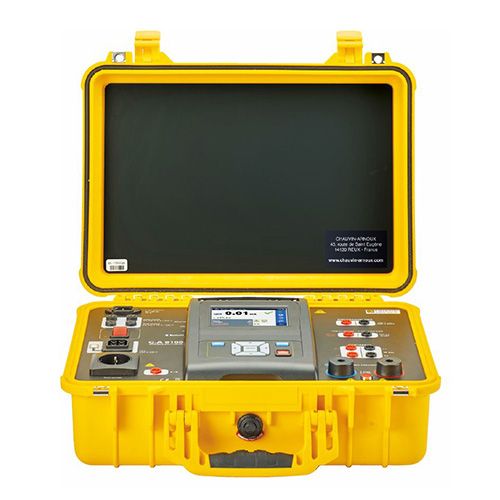

Multitester van elektrische machinesen bordenbouwen

Niet op voorraad

SKU-short: CA6163
Merk: Enerdis

Hoofdspecificaties

Dielectric test: standard measurement modes (Un from 100 to 5,000V with Ilim 500mA) and programmed modes (t1, t2, t3, U1, U2).
Continuity: up to 100 O with 0.1 < Itest < 25 A.
Voltage drop: up to 100V (Itest > 10 A).
Insulation resistance: up to 1 GO at 250/500 VDC and 1,000 VDC.
Measurement of internal and external discharge time (at the socket).
Leakage current: operating and residual up to 20 mA, contact up to 2 mA.
Functional testing: voltage, current, frequency and power.
AUTOTEST function for automatic execution of measurement sequence (up to 50).
Large memory: 1,600 measurements.
Software to upload the stored data, generate test reports and program measurement sequences.
Delivered with all necessary measurement cables as standard and many optional accessories.
Delivered with carrying bag containing: 1 mains cable, 2 pistol-grip dielectrical testers with 2 metre-long wire, 2 insulation test draden, 3 metres long (1 red, 1 zwart), 4 alligator clamps (2 red, 2 zwart), 2 test probes (1 red, 1 zwart), 4 continuity test cables, 2.5 metres long (2 red, 2 zwart), 1 discharge time cable, 5 instruction manuals (5 languages).

Toon meer

Omschrijving

Dielectric test: standard measurement modes (Un from 100 to 5,000V with Ilim 500mA) and programmed modes (t1, t2, t3, U1, U2).
Continuity: up to 100 O with 0.1 < Itest < 25 A.
Voltage drop: up to 100V (Itest > 10 A).
Insulation resistance: up to 1 GO at 250/500 VDC and 1,000 VDC.
Measurement of internal and external discharge time (at the socket).
Leakage current: operating and residual up to 20 mA, contact up to 2 mA.
Functional testing: voltage, current, frequency and power.
AUTOTEST function for automatic execution of measurement sequence (up to 50).
Large memory: 1,600 measurements.
Software to upload the stored data, generate test reports and program measurement sequences.
Delivered with all necessary measurement cables as standard and many optional accessories.
Delivered with carrying bag containing: 1 mains cable, 2 pistol-grip dielectrical testers with 2 metre-long wire, 2 insulation test draden, 3 metres long (1 red, 1 zwart), 4 alligator clamps (2 red, 2 zwart), 2 test probes (1 red, 1 zwart), 4 continuity test cables, 2.5 metres long (2 red, 2 zwart), 1 discharge time cable, 5 instruction manuals (5 languages).
