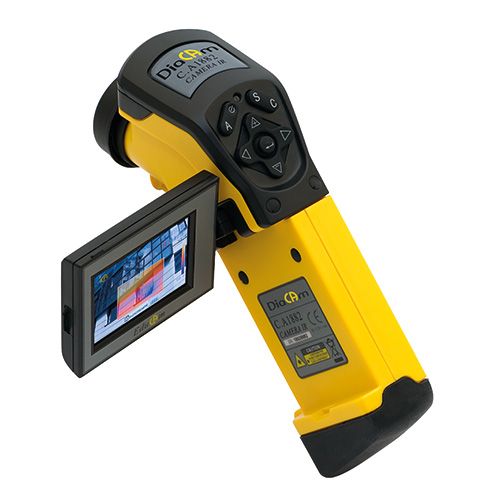

Thermische IR camera 160x120 -20°+250° met SD-kaart 2Go en oplaadbare batterij

Affordable Thermographic Diagnostics

Features

• Compact and lightweight: ergonomics designed for effortless handling.
• Particularly easy to use.
• Excellent thermal sensitivity: 0.08°C.
• Wide dynamic range for measurement (-20°C to +250°C).
• With its wide-angle lens, the CA1882 is ideal for detecting energy losses when inspecting buildings.
• It is also equipped with the MixVision function which allows you to link a thermogram to a real image. This function enables you to define how much of the infrared image is merged with the real image, using a scale from 0 to 100 %.

Applications

• Mechanical and electrical applications: To detect anomalies or malfunctions on internal components in order to prevent motor overheating, the DiaCAm is simple, effective tools for quick diagnostics.
• Building diagnostics: To improve comfort or optimize a building's energy performance, thermal cameras are powerful tools capable of detecting faults and irregularities related to thermal bridges, thermal insulation, airtightness or problems involving water.
• Industrial maintenance and repair: This thermal camera is ideal for electrical maintenance, highlighting any electrical equipment malfunctions and particularly abnormal overheating.

Specifications

• Detector: 160 x 120, frequency 50 Hz.
• Sensitivity: (NETD) 0,1°C à 30°C.
• Temperature range: -20°C à +250°C.
• v: ±2 °C or ±2%.
• Field of view: 38° x 28°.
• Spatial resolution: 4,4 mrad.
• Min. focal distance: 0,1 m.
• Focusing: Manual.
• "MixVision" mode: Merge function with adjustment from 0 to 100 % of the level of the thermal image overlay in the real image.
• Image size: 640 x 480 pixels.
• Functions: Emissivity, environmental temperature, distance, relative humidity.
• Measurement tools: 1 manual cursor + automatic Min/Max detection on adjustable area.
• Memory: 1,000 thermal images as standard / Removable 2 GB SD card.
• Battery: Lithium-Ion rechargeable battery / Battery life: 3 hours.
• Dimensions: 172 x 80 x 162 mm.
• Protection : IP54.

State at delivery

Delivered in plain cardboard box with battery charger, docking station, battery, 2 GB mini-SD card, SD card reader , video cable, RayCam Report software on CD-ROM, operating manuals and measurement reports.
