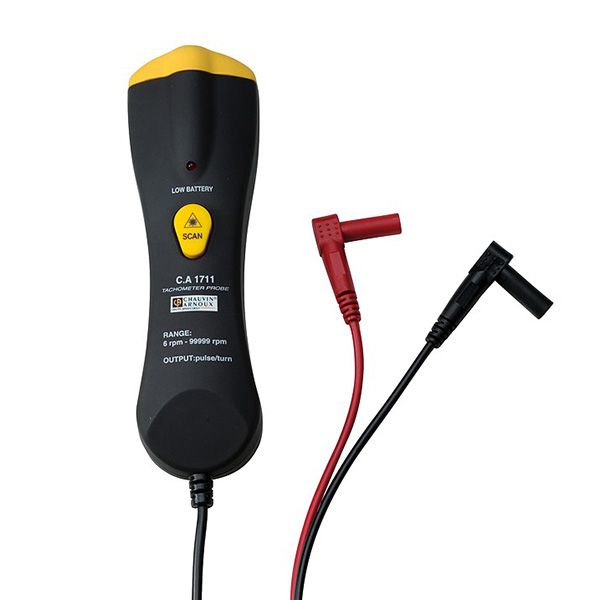

This tachometer probe is ideal for electric motor maintenance. Measurement is performed by photo-reflection, allowing no-contact measurement: a reflective strip is positioned on the rotating part to be checked. The probe converts the rotation speed into voltage pulses on 2 x 4 mm isolated banana plugs. To take a measurement, the CA 1711 probe must be hooked up to a CA 8220 power analyser. The switch should be on RPM. The motor's rotation speed will then be displayed directly.
Features
Specified measurement range: 6 to 120,000RPM.
Accuracy: +/- 0,5%.
Output signal: Pulse per revolution.
Detection distrance: 50 to 300 mm.
Power supply: 9V battery (6LF22).
Consumption approx.: 15mA.
Dimensions: 164 x 50 x 40 mm.
Weight: 182g (with battery).
Protection: IP 53 acc. to IEC 60529:1992; IK 04 acc. to IEC 50102:1995.
This tachometer probe is ideal for electric motor maintenance. Measurement is performed by photo-reflection, allowing no-contact measurement: a reflective strip is positioned on the rotating part to be checked. The probe converts the rotation speed into voltage pulses on 2 x 4 mm isolated banana plugs. To take a measurement, the CA 1711 probe must be hooked up to a CA 8220 power analyser. The switch should be on RPM. The motor's rotation speed will then be displayed directly.
Features
Specified measurement range: 6 to 120,000RPM.
Accuracy: +/- 0,5%.
Output signal: Pulse per revolution.
Detection distrance: 50 to 300 mm.
Power supply: 9V battery (6LF22).
Consumption approx.: 15mA.
Dimensions: 164 x 50 x 40 mm.
Weight: 182g (with battery).
Protection: IP 53 acc. to IEC 60529:1992; IK 04 acc. to IEC 50102:1995.
