Energiemeter Tri 80A DIN4 Classe 1 MID + Ethernet

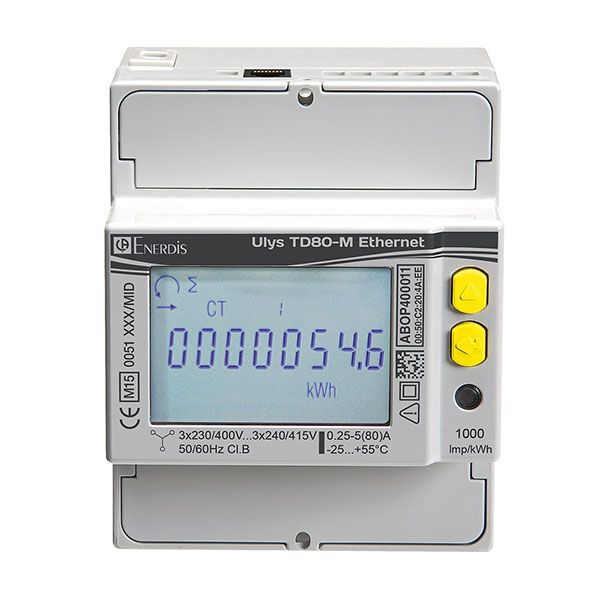

The ULYS TD80-M Ethernet meter is a comprehensive, innovative tool for advanced supervision of electrical feeders in a compact unit (4 DIN modules). It is MID-certified, allowing electricity rebilling on private distribution networks.

Highlights

• Complete: storage of all the electrical activity on a feeder (all the instantaneous quantities and energy indices).
• No software: Access to the recordings and real-time data via integrated web pages.
• Automatic and practical: No lost data or manual readings. The recordings are sent automatically to the FTP server.
• Multi-measurement and recording: U, V, I, PF, F.
• Compact: 4 DIN up to 80A.
• Ethernet communication and integrated web pages.
• Programmed dispatch of recordings to FTP server.
• MID: Class B as per EN50470-1/3.

Main specifications

• Direct input of current up to 80 A in 4 DIN modules (4-wire mounting).
• Multi-measurement: Instantaneous: P, Q, S.
• Total and partial cumulated energy indices.
• Values of V, U, I, PF and F on screen or remotely via communication (per phase/total).
• Pulse output configurable as P, Q or S.
• Connection error indicator.
• Customization of meter display according to the user profile (operator or expert).
• Modbus TCP communication via integrated Ethernet.
• Lead-sealable terminal covers.
• The integrated Modbus TCP communication provides a direct interface between these meters and our Elog datalogger supervised by the E.ONLINE energy management system, or with any third-party system (e.g. PLC, TBM, CTM, etc.).
