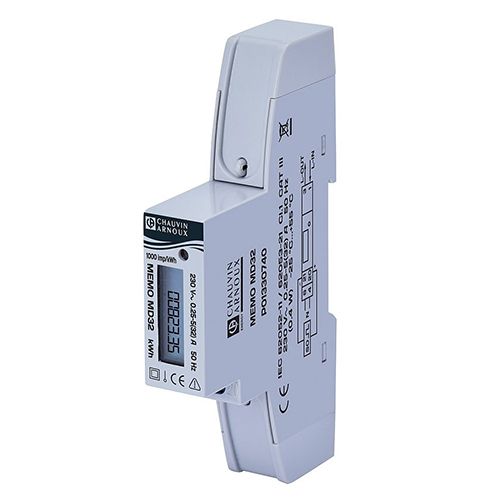

Eenfasige energiemeter 32A DIN1 Klasse 1

Op voorraad

SKU-short: MEMO-MD32
Merk: Enerdis

Hoofdspecificaties

One of our economical solutions for measuring active energy consumption on a single-phase 230 Vac network.
Its compact dimensions (1 DIN module) make it easy to install in an electrical control box.
Direct connection without parameter settings.
Rated current: 5(32) A.
Maximum permanent current: 45 A.
Accuracy class 1 (IEC 62053-21).
Compact: 1 DIN module.
Built-in lead-sealing system.
Pulse output as standard.
Width: 1 module.
Inrush current: 0.02A.
LCD screen: 0 to 99999.88 kWh.
Metrological LED: 1,000 flashes/kWh.
Consumption < 0.4W / < 8VA.
Pulse output: 1,000 pulses/kWh.

Toon meer

Omschrijving

One of our economical solutions for measuring active energy consumption on a single-phase 230 Vac network.
Its compact dimensions (1 DIN module) make it easy to install in an electrical control box.
Direct connection without parameter settings.
Rated current: 5(32) A.
Maximum permanent current: 45 A.
Accuracy class 1 (IEC 62053-21).
Compact: 1 DIN module.
Built-in lead-sealing system.
Pulse output as standard.
Width: 1 module.
Inrush current: 0.02A.
LCD screen: 0 to 99999.88 kWh.
Metrological LED: 1,000 flashes/kWh.
Consumption < 0.4W / < 8VA.
Pulse output: 1,000 pulses/kWh.
