Thermische IR camera 80x80 -20°+250° met USB, Bluetooth en oplaadbare batterijen

Niet op voorraad Niet op voorraad
SKU-short: CA1950
Merk: Chauvin Arnoux

Hoofdspecificaties

  • Geleverd in koffer met 4 NiMH-batterijen en batterijlader, 1 micro SD-kaart HD, 1 USB-kabel, 1 set van Bluetooth koptelefoon, CAmReport software op CD-Rom en handleidingen.
  • Exceptional 13-hour battery life.
  • Quick startup in under 3 seconds.
  • An emissivity table which can be enhanced as required.
  • The possibility of renaming the images and thermograms by site.
  • Recording and storage of the configurations according to the different applications (building, electrical cabinet, etc.).
  • Vocal annotations to record your comments directly on the image.
  • Connection to current clamps and multimeters: all the necessary measurements simultaneously.
  • Comfortable grip with direct access to the functions with just one hand.
  • It is perfectly balanced so that it does not move even when stood on a benchtop.
  • The display uses a wide 2.8-inch screen with automatic brightness adjustment.
  • The field of view (20°x20°) is equipped with a focus-free function which ensures that the image remains sharp whatever the distance.
  • Contextual help guides users to limit the risk of error..
  • The flap protecting the lens is built into the instrument, so it does not get in the way and cannot be lost.
  • 80 x 80 UFPA microbolometer-type detector, 8 ~14 µm.
  • IFOV (spatial resolution) 4.4 mrad.
  • Temperature range 20°C to 250°C.
  • Display mode: thermal image, real image with automatic parallax compensation. Image merging available with PC software.
  • Measuring tools: 1 manual cursor+ 1 automatic detection + Min Max on adjustable area + Temperature profile + Isotherm.
  • Adjustable parameters: emissivity, environmental temperature, distance, relative humidity.
  • 2 GB (approx. 4,000 images) on micro SD card, up to 32 GB with removable card.
  • CAmReport, the software for analysing the thermograms, can be used for close analysis with the help of several tools. It can also be used to generate reports automatically based on various different templates provided. These reports can be exported in Word or pdf format. This makes it easier to print and archive them.
  • Interfaces: USB link and Mass Storage function: the product is then recognized as a USB drive for easy transfer of the images; Bluetooth for connectivity with earphones (vocal comments) and Chauvin Arnoux® Metrix® measuring instruments (F407, F607, MTX 3292, MTX 3293).
  • Ingress protection: IP 54.
  • Warranty: 2 years.
Toon meer
* Log in en krijg toegang tot uw voorkeursprijzen

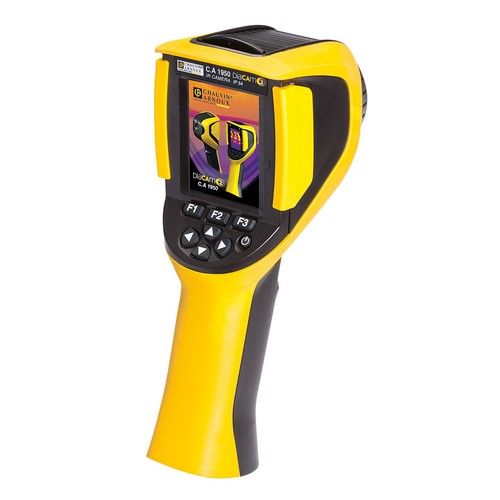

main product photo

Omschrijving

  • Geleverd in koffer met 4 NiMH-batterijen en batterijlader, 1 micro SD-kaart HD, 1 USB-kabel, 1 set van Bluetooth koptelefoon, CAmReport software op CD-Rom en handleidingen.
  • Exceptional 13-hour battery life.
  • Quick startup in under 3 seconds.
  • An emissivity table which can be enhanced as required.
  • The possibility of renaming the images and thermograms by site.
  • Recording and storage of the configurations according to the different applications (building, electrical cabinet, etc.).
  • Vocal annotations to record your comments directly on the image.
  • Connection to current clamps and multimeters: all the necessary measurements simultaneously.
  • Comfortable grip with direct access to the functions with just one hand.
  • It is perfectly balanced so that it does not move even when stood on a benchtop.
  • The display uses a wide 2.8-inch screen with automatic brightness adjustment.
  • The field of view (20°x20°) is equipped with a focus-free function which ensures that the image remains sharp whatever the distance.
  • Contextual help guides users to limit the risk of error..
  • The flap protecting the lens is built into the instrument, so it does not get in the way and cannot be lost.
  • 80 x 80 UFPA microbolometer-type detector, 8 ~14 µm.
  • IFOV (spatial resolution) 4.4 mrad.
  • Temperature range 20°C to 250°C.
  • Display mode: thermal image, real image with automatic parallax compensation. Image merging available with PC software.
  • Measuring tools: 1 manual cursor+ 1 automatic detection + Min Max on adjustable area + Temperature profile + Isotherm.
  • Adjustable parameters: emissivity, environmental temperature, distance, relative humidity.
  • 2 GB (approx. 4,000 images) on micro SD card, up to 32 GB with removable card.
  • CAmReport, the software for analysing the thermograms, can be used for close analysis with the help of several tools. It can also be used to generate reports automatically based on various different templates provided. These reports can be exported in Word or pdf format. This makes it easier to print and archive them.
  • Interfaces: USB link and Mass Storage function: the product is then recognized as a USB drive for easy transfer of the images; Bluetooth for connectivity with earphones (vocal comments) and Chauvin Arnoux® Metrix® measuring instruments (F407, F607, MTX 3292, MTX 3293).
  • Ingress protection: IP 54.
  • Warranty: 2 years.
