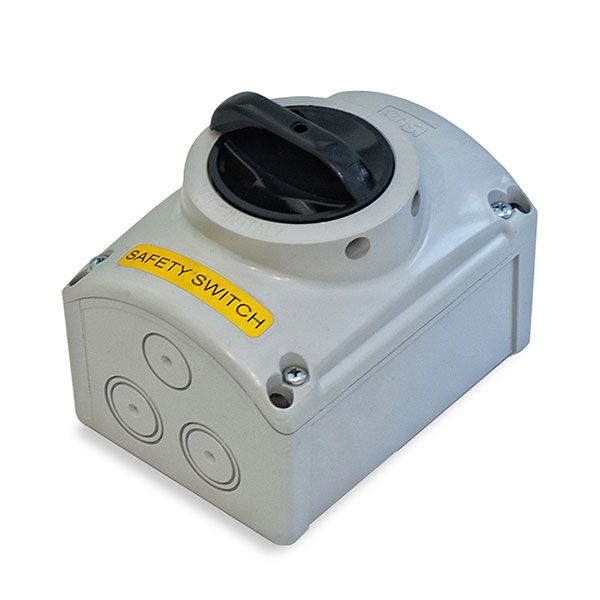

Veiligheid schakelars 16-40A IP67
SKU-short:
SSW-S20-IP67Merk:
ROSI
Hoofdspecificaties
- Disconnecting device with manual control.
- Safety switch designed for industrial and domestic application.
- Totally crush resistant cover.
- External dimension: 96,5 x 131 x 105,53 mm.
- Weight: 150 g.
- Degree of Protection: 1P67.
- Impact resistance: IK08.
- Laying temperature: - 5°C + 40° C.
- Operating temperature: 60°C.
- Resistance to "Glow wire" test: 650°C.
- Reference Standards: CEI EN 60947-3.
- Poles: 2P - 3P - 4P.
- Rated insulation voltage: 690V.
- Rated voltage pulses: 6 kV.
- Rated thermal current inside the box (Ith): 40 A.
- Rated Conditional short-circuit: 10 kA.
- Frequency: 50/60 Hz.
- Connecting flexible/solid conductors Min/Max: 1,5 - 10 mm².
Toon meer
Omschrijving
- Disconnecting device with manual control.
- Safety switch designed for industrial and domestic application.
- Totally crush resistant cover.
- External dimension: 96,5 x 131 x 105,53 mm.
- Weight: 150 g.
- Degree of Protection: 1P67.
- Impact resistance: IK08.
- Laying temperature: - 5°C + 40° C.
- Operating temperature: 60°C.
- Resistance to "Glow wire" test: 650°C.
- Reference Standards: CEI EN 60947-3.
- Poles: 2P - 3P - 4P.
- Rated insulation voltage: 690V.
- Rated voltage pulses: 6 kV.
- Rated thermal current inside the box (Ith): 40 A.
- Rated Conditional short-circuit: 10 kA.
- Frequency: 50/60 Hz.
- Connecting flexible/solid conductors Min/Max: 1,5 - 10 mm².
