Haakse scheidbare stekkers interface A - 250A

Bekijk de variaties
SKU-short: RSES
Merk: TE-RAYCHEM

Hoofdspecificaties

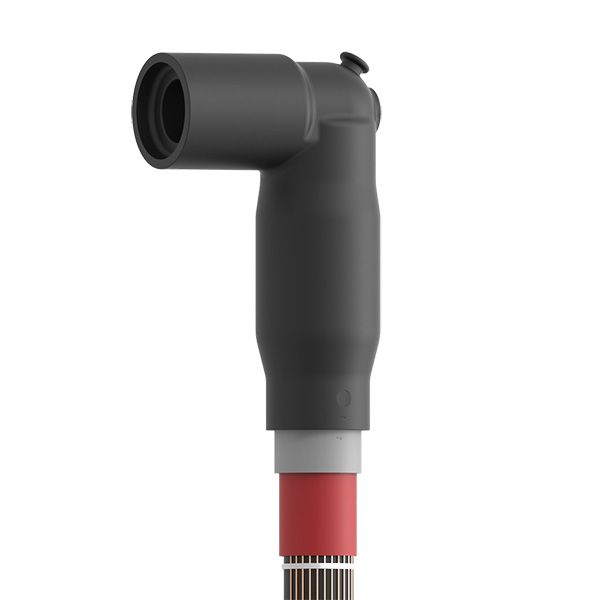

Screened elbow separable connectors for interface A (EN 50180/EN 50181): 250A, up to 24kV with integrated sealing.
Designed to connect single-core polymeric cables to medium voltage gas insulated switch­gears and other equipments using bushings type "A" (according to EN 50180/EN 50181) specified for 250A continuous current. The RSES and RSSS connectors are compliant with CENELEC HD 629.1 S2 02/2006+A1-2008 and tested for a system voltage up to 24kV.

Key features

  • Using mechanical shear bolt cable lugs, RSES are easy and quick to install while supporting a wide range of different cable cross sections (16-150 mm²).
  • Hybrid material design for outstanding mechanical and electrical performance.
  • Reliable operation even under harsh environmental conditions.
  • Screened connector body for improved safety.
  • Molded cable adapter with integrated sealing for easier installation.
  • Optional Voltage Detection (VD) point.
  • Optional Metal Housing (MH).

Technical data

  • Conductor Cross section Range: 16 - 150 mm².
  • Diameter over conductor (round, stranded): 4,6 - 15,0 mm.
  • Diameter over conductor (round, solid): 3,5 - 13,8 mm.
  • Cable Insulation Diameter Range: 12,7 - 28,5 mm.
  • Maximum System Voltage: 24 kV.
  • Continuous Current Rating: 250 A.
  • Basic Impulse Level: 125 kV.
  • Partial Discharge at 2 Uo: < 3 pc.
  • AC Voltage Withstand, 5 min: 57 kV.
  • DC Voltage Withstand, 15 min: 76 kV.
Toon meer
main product photo
* Log in en krijg toegang tot uw voorkeursprijzen
Gegroepeerde productitems
Product Naam REF Cross Section Ø Insulating prijs Voorraad
Haakse scheidbare stekker 16² (24kV) Ø12,7-19,2 mm RSES-525A 12 kV: 16 - 70 mm² / 17,5 kV: 16 - 50 mm² / 24 kV: 16 mm² 12,7 - 19,2 mm Inloggen
Op voorraad
Haakse scheidbare stekker 25-95² (24kV) Ø17,9-25 mm RSES-525B 12 kV: 95 mm² / 17,5 kV: 50 - 95 mm² / 24 kV: 25 - 95 mm² 17,9 - 25,0 mm Inloggen
Op voorraad
Haakse scheidbare stekker 95² (24kV) Ø21,9-28,5 mm RSES-525B95 17,5 kV: 95 mm² / 24 kV: 95 mm² 21,9 - 28,5 mm Inloggen
Op voorraad
Haakse scheidbare stekker 70-95² (24kV) Ø17,9-25 mm RSES-525C 12 kV: 95 - 150 mm² / 17,5 kV: 70 - 120 mm² / 24 kV: 70 - 95 mm² 17,9 - 25,0 mm Inloggen
délai sur demande
Haakse scheidbare stekker 70-150² (24kV) Ø21,9-28,5 mm RSES-525D 12 kV: - / 17,5 kV: 120 - 150 mm² / 24 kV: 70 - 150 mm² 21,9 - 28,5 mm Inloggen
Op voorraad
* Log in en krijg toegang tot uw voorkeursprijzen

Omschrijving

Screened elbow separable connectors for interface A (EN 50180/EN 50181): 250A, up to 24kV with integrated sealing.
Designed to connect single-core polymeric cables to medium voltage gas insulated switch­gears and other equipments using bushings type "A" (according to EN 50180/EN 50181) specified for 250A continuous current. The RSES and RSSS connectors are compliant with CENELEC HD 629.1 S2 02/2006+A1-2008 and tested for a system voltage up to 24kV.

Key features

  • Using mechanical shear bolt cable lugs, RSES are easy and quick to install while supporting a wide range of different cable cross sections (16-150 mm²).
  • Hybrid material design for outstanding mechanical and electrical performance.
  • Reliable operation even under harsh environmental conditions.
  • Screened connector body for improved safety.
  • Molded cable adapter with integrated sealing for easier installation.
  • Optional Voltage Detection (VD) point.
  • Optional Metal Housing (MH).

Technical data

  • Conductor Cross section Range: 16 - 150 mm².
  • Diameter over conductor (round, stranded): 4,6 - 15,0 mm.
  • Diameter over conductor (round, solid): 3,5 - 13,8 mm.
  • Cable Insulation Diameter Range: 12,7 - 28,5 mm.
  • Maximum System Voltage: 24 kV.
  • Continuous Current Rating: 250 A.
  • Basic Impulse Level: 125 kV.
  • Partial Discharge at 2 Uo: < 3 pc.
  • AC Voltage Withstand, 5 min: 57 kV.
  • DC Voltage Withstand, 15 min: 76 kV.
