Vermogen- en energie logger zonder display + MiniFlex MA193 stroomtang

Niet op voorraad Niet op voorraad
SKU-short: PEL102MA193
Merk: Chauvin Arnoux

Hoofdspecificaties

Ergonomic, magnetized and suitable for all types of cabinets, PEL102 loggers provide all the power and energy measurements simultaneously.

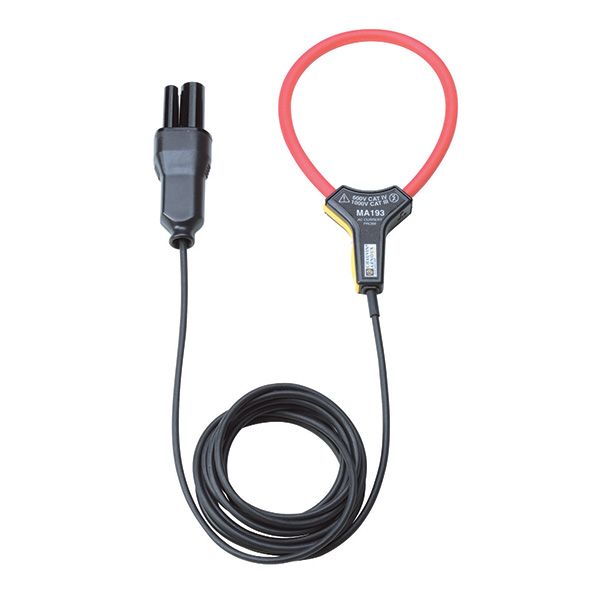

Current clamps MiniFlex® MA193 flexible current sensors are used to measure the current flowing in a cable without opening the circuit. They also insulate the user from dangerous voltages in the circuit.

PEL102

Specifications

  • Voltage up to 1,000 V.
  • Current up to 10,000 A.
  • Voltage ratio / current ratio up to 650,000 V / up to 25,000 A.
  • Power from 10 W/var/VA to 10 GW/Gvar/GVA.
  • Energy up to 4EWh / 4 EVAh / 4 Evarh.
  • Phase: cos f, tan F, PF.
  • Harmonics up to 50th order.
  • 8 GB SD memory card (SD-HC card up to 32 GB).

MA193

Specifications

  • Measurement range: 100 mA - 10 000 A.
  • Clamping diameter: 70 mm.
  • Sensor length: 200 mm.
  • Dimensions (L x W x H): approx. 130 x 80 x 12 mm.
  • Connection cable length: 3 m.
  • Weight: approx. 60 g.
  • Protection index: IP 50 per IEC 60529.
  • Electrical safety as per IEC 61010-2-032: 600V cat. IV or 1000V cat. III.
Toon meer

Momenteel zijn er geen online aankopen mogelijk.
Wilt u een artikel bestellen of een offerte aanvragen?
Neem contact met ons op via e-mail op info@sadinter.nl of telefonisch op +31 (0) 182 74 32 44.

Omschrijving

Ergonomic, magnetized and suitable for all types of cabinets, PEL102 loggers provide all the power and energy measurements simultaneously.
Current clamps MiniFlex® MA193 flexible current sensors are used to measure the current flowing in a cable without opening the circuit. They also insulate the user from dangerous voltages in the circuit.

PEL102

Specifications

  • Voltage up to 1,000 V.
  • Current up to 10,000 A.
  • Voltage ratio / current ratio up to 650,000 V / up to 25,000 A.
  • Power from 10 W/var/VA to 10 GW/Gvar/GVA.
  • Energy up to 4EWh / 4 EVAh / 4 Evarh.
  • Phase: cos f, tan F, PF.
  • Harmonics up to 50th order.
  • 8 GB SD memory card (SD-HC card up to 32 GB).

MA193

Specifications

  • Measurement range: 100 mA - 10 000 A.
  • Clamping diameter: 70 mm.
  • Sensor length: 200 mm.
  • Dimensions (L x W x H): approx. 130 x 80 x 12 mm.
  • Connection cable length: 3 m.
  • Weight: approx. 60 g.
  • Protection index: IP 50 per IEC 60529.
  • Electrical safety as per IEC 61010-2-032: 600V cat. IV or 1000V cat. III.
