Multimeter 750AC/1000DC True RMS CAT IV AutoV LoZ +T°
Merk: NIEAF
Hoofdspecificaties

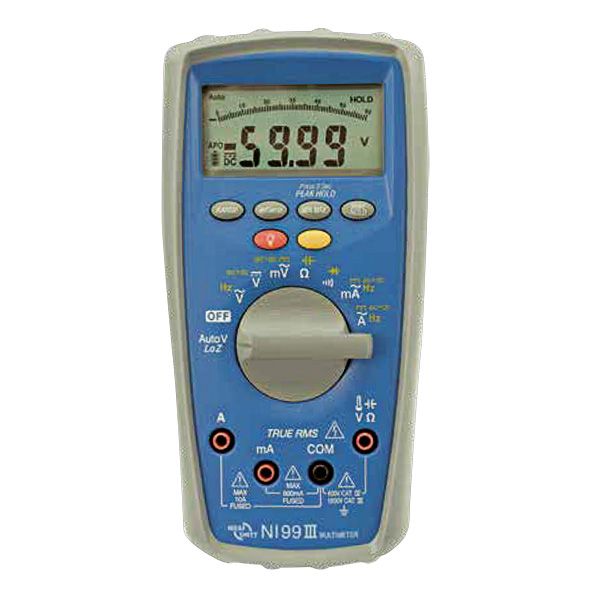

The most complete and accurate multimeter of the 90 series is the NI 99III. This True RMS multimeter is a merge of user friendly navigation, functionality, accuracy and quality.
Because of its many functions, e.g. temperature measurement, AutoV LoZ (supressing "ghost" voltages) and peak hold, the NI 99III is an excellent and complete digital multimeter. The utility case has a removable protective holster with built-in stand (for workbench applications).
Features
- True RMS
- AC/DC voltage
- AC/DC current
- AC+DC measuring
- Resistance
- Frequency
- Capacitance
- Diode- / continuity
- Smart hold
- Min-max hold
- Temperature
- CAT IV
- AutoV LoZ
- Voltsense (non-contact voltage detection)
- Autorange
- Analoge bargraph
- Clear display
Specifications
- Voltage: 1000 VAC (+ 1.2 % + 5d) / 1000 VDC (+ 0.08 % + 2d).
- Current: 10 AAC (+ 1.2 % + 3d) / 10 ADC (+ 0.8 % + 3d).
- Frequency: 4 MHz + 0.1 % + 2d.
- Resistance: 40 MO + 0.8 % + 2d.
- Capacity: 10 mF + 1.2 % + 2d.
- AutoV: 1000 VAC/DC (+ 0.8 % + 2d).
- Temperature: -40°C...+400°C (+ 1.0 % + 10d).
- Display resolution: 6000d.
- Overvoltage category: CAT III 1000 V / CAT IV 600 V.
- Standard: EN 61010-1.
- Supply: 1x 9 V battery.
- Dimensions: 190 x 94 x 48 mm.
- Weight: ± 460 g.
