Driefasige vermogen analyser 4V/3I 1000V AC/DC TRMS USB

Bekijk de variaties
SKU-short: CA833X
Merk: Chauvin Arnoux

Hoofdspecificaties

  • TRMS AC+DC voltage and current
  • Real-time display of wave forms (4 voltages and 3 currents).
  • Half-period RMS measurements of voltages and currents.
  • Intuitive use.
  • Automatic recognition of the different types of current sensors.
  • Measurement on any type of installation: three-phase, Aron, etc.
  • Integration of all the DC components.
  • Measurement, calculation and display of harmonics up to the 50th order.
  • Display of phasor diagram.
  • Measurement of P, Q, S and D power values (total and per phase).
  • Energy measurement (total and per phase).
  • Calculation of the K Factor & FHL.
  • Calculation of distorting voltages and currents.
  • Calculation of the cos f displacement power factor (DPF) and the power factor (PF).
  • Capture of hundreds of transients lasting several tens of µs.
  • Calculation of Pst & Plt flicker values.
  • Unbalance calculation (current and voltage).
  • Monitoring of the electrical network with setting of alarms.
  • IEC 61000-4-30 Class B.
  • Back-up and recording of screenshots (image and data).
  • Recording and export on PC.
  • Software for data recovery and real-time communication with a PC.
  • Power supply: 9.6 V NiMH rechargeable battery or external mains charger.
  • Battery life: up to 13 hours.
  • Geleverd met een tas voor accessoires, 5 netsnoeren met banaanstekker 4mm van 3m, 5 krokodilklemmen, een herkenningsset 12 kleuren van snoeren en ingangen, 1 beschermfolie voor het beeldscherm (gemonteerd), 1 USB-snoer, 1 netsnoer, 1 netblok, 1 veiligheidsstekker, 1 CD met gebruiksaanwijzing en 1 CD met PC software Vermogen Analyser Transfer.
Toon meer

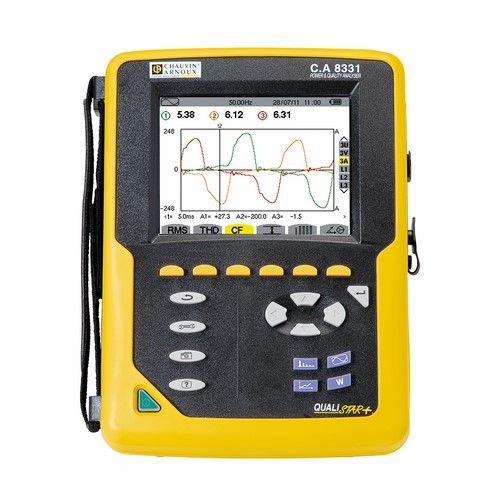

main product photo
* Log in en krijg toegang tot uw voorkeursprijzen
Gegroepeerde productitems
REF Capacity Connection Curve Depth No. Conductors Voltage Type prijs Voorraad
CA8331 Trend (8h) 1xUSB 0 Memory max : 2 weeks 4 voltage inputs / 3 current inputs < 1000V AC/DC Inloggen
délai sur demande
CA8333 Trend (72h) / Alarms (10) / Harmonics 1xUSB Transient (50) / Inrush (80ms) Memory max : 2 months 4 voltage inputs / 3 current inputs < 1000V AC/DC Inloggen
délai sur demande
CA8336 Trend (22J) / Alarms (40) / Harmonics 1xUSB Transient (210) / Inrush (10min) Memory max : 2 years 5 voltage inputs / 4 current inputs < 1000V AC/DC Batterie rechargeable 9,6 V NiMH ou alimentation secteur Inloggen
Op voorraad
CA8336MA193 Trend (22J) / Alarms (40) / Harmonics / Inrush 1xUSB Transient (210) / Inrush (10min) Memory max : 2 years 5 voltage inputs / 4 current inputs < 1000V AC/DC Inloggen
délai sur demande
* Log in en krijg toegang tot uw voorkeursprijzen

Omschrijving

  • TRMS AC+DC voltage and current
  • Real-time display of wave forms (4 voltages and 3 currents).
  • Half-period RMS measurements of voltages and currents.
  • Intuitive use.
  • Automatic recognition of the different types of current sensors.
  • Measurement on any type of installation: three-phase, Aron, etc.
  • Integration of all the DC components.
  • Measurement, calculation and display of harmonics up to the 50th order.
  • Display of phasor diagram.
  • Measurement of P, Q, S and D power values (total and per phase).
  • Energy measurement (total and per phase).
  • Calculation of the K Factor & FHL.
  • Calculation of distorting voltages and currents.
  • Calculation of the cos f displacement power factor (DPF) and the power factor (PF).
  • Capture of hundreds of transients lasting several tens of µs.
  • Calculation of Pst & Plt flicker values.
  • Unbalance calculation (current and voltage).
  • Monitoring of the electrical network with setting of alarms.
  • IEC 61000-4-30 Class B.
  • Back-up and recording of screenshots (image and data).
  • Recording and export on PC.
  • Software for data recovery and real-time communication with a PC.
  • Power supply: 9.6 V NiMH rechargeable battery or external mains charger.
  • Battery life: up to 13 hours.
  • Geleverd met een tas voor accessoires, 5 netsnoeren met banaanstekker 4mm van 3m, 5 krokodilklemmen, een herkenningsset 12 kleuren van snoeren en ingangen, 1 beschermfolie voor het beeldscherm (gemonteerd), 1 USB-snoer, 1 netsnoer, 1 netblok, 1 veiligheidsstekker, 1 CD met gebruiksaanwijzing en 1 CD met PC software Vermogen Analyser Transfer.
