Analoge isolatie weerstand tester 500V

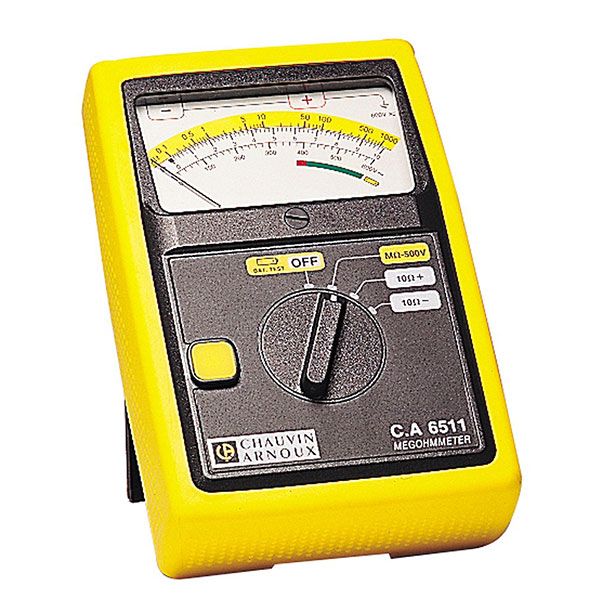

The CA6511 is an economical tester popular with self-employed electricians, installers and maintenance departments for measurements on electrical devices and installations.

Functions and specifications

• Insulation measurement: up to 1,000 MO (1 range) at 500 V DC.
• AC voltage measurement: 0 to 600 V.
• Continuity measurement: -10 ? to +10 ? (I = 200 mA).
• Automatic voltage absence testing by direct measurement.
• Single input on two colour-coded terminals.
• Easy reading of the indication and logarithmic scale.
• Power supply: 4 x LR6 1.5 V batteries.
• Compliant with IEC 61557.
• Electrical safety: IEC 61010 600V Cat III.
• Dimensions: 167 x 106 x 55 mm.
• Weight: 600 g.
