Geleverd met 1 externe netlader, software + snoer voor optische communicatie/USB, gebruikshandleidingen en 5 etiketten.
4 in 1: 3-pole and 4-pole measurements, Resistivity (Wenner + Schlumberger methods), Earth coupling, Continuity & resistance.
Large backlit LCD screen and a battery which is rechargeable with an external charger connected to the mains or to a vehicle cigarette lighter.
Equipped with a function for direct, ordered storage of the measurement results.
A USB communication output can be used to export the data onto a PC in order to process them with the Ground Tester Transfer software.

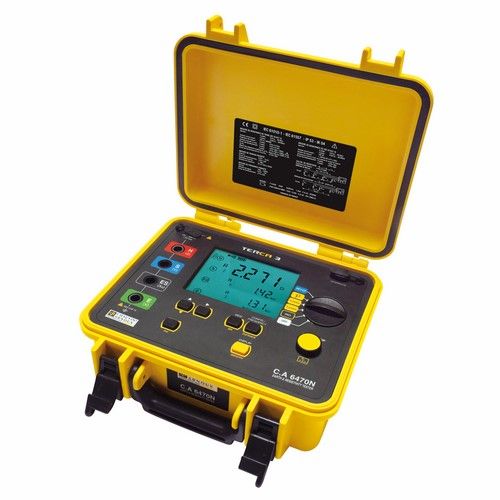

The CA6470N offers approximately 10 times greater accuracy thanks to its four-pole earth measurements. This method allows measurements of low earth resistance values, which are essential to meet the requirements of power distribution and transmission companies.
It guarantees the reliability of measurements carried out by traditional stake-based methods.
Self-diagnosis when each measurement starts, so that any faults liable to affect the measurements (bad connections or presence of disturbance signals) are indicated.
Extensive measurement ranges: 0.001 ? to 100 k?.
Adjustment of the measurement frequency between 41 Hz and 512 Hz (3P & 4P measurements).
For earth coupling measurements, simply perform the 3 succesive measurements required and the tester then calculates the coupling coefficient automatically.
For soil resistivity measurements, simply program the distances used for the measurement and the instrument automatically calculates r using the Wenner or Schlumberger methods.
Power supply: NiMh rechargeable battery with external charger.
