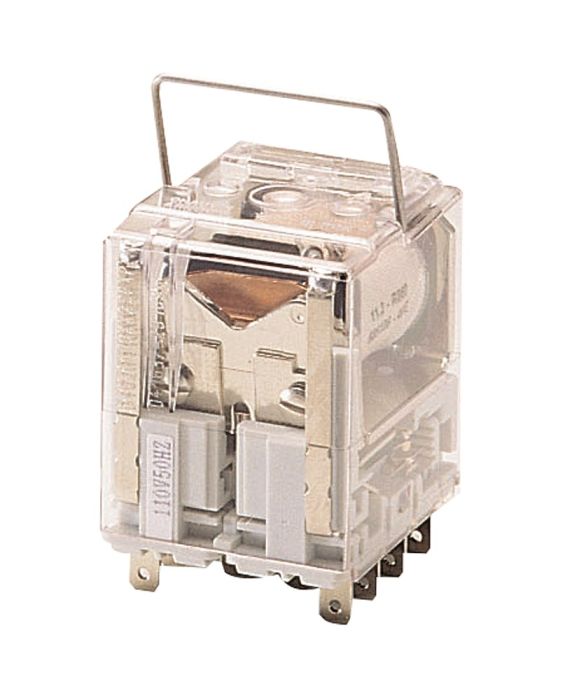

Monostabiele relais 40Vdc met vrijloop diode

Product Advantages

• Monostable relay with 4 changeover contacts /5 A.
• Independent switch tube for each contact.
• Magnetic arc blow-out as standard.

Technical specifications

• Rated voltage (Un):
  • DC coil supply: 12, 24, 26, 28, 48, 60, 110, 125, 220, 250 Vdc.
  • AC coil supply: 24, 48, 60, 110, 127, 220 Vac.
• Operating range:
  • DC coil supply: 0,80 to 1,1 Un.
  • AC coil supply: 0,85 to 1,1 Un.
• Consumptio:
  • DC coil supply: 3W.
  • AC coil supply: 4VA.
• Release voltage:
  • DC coil supply: 0,2 Un.
  • AC coil supply: > 0,1 Un.
• Contact configuration: CO (form C).
• Rated current: 5A.
• Material: AgCu3/Cu.
• Max. operating voltage: 250 Vdc or 300 Vac.
• Breaking capacity (100.000 man – 1.800 man/h – 50 %): 0,2 A – 110 Vdc – L/R 40 ms.
• Max. intermittent current: 100 A during 10 ms.
