Hydraulische handpomp Akku-Compact Flex® op batterij

The Akku-Compact Flex® is a handheld battery-powered electro-hydraulic device for making holes of different shapes in soft to medium-strength steel, stainless steel and aluminium sheets.

Features

• It is designed for punching only single metal sheets and it must be used in a dry environment free of corrosive or flammable substances.
• It requires little maintenance thanks to the closed hydraulic circuit and enable you to work in any position.
• Electronic and mechanic excess pressure valves limit the maximum attainable pressure within the device and thus protect the hydraulic punch from excessive use and damage.

Technical Data

• Max. punching force: 75 kN / 16800 lbs.
• Max. hydraulic pressure 680 Bar / 9850 psi.
• Hydraulic medium: Shell-Naturelle HF-E15.
• Piston stroke: 18 mm / 0.7".
• Tool mounting: 19 mm 3/4" – 16 UNF.
• Weight - Complete unit (incl. 1.5 Ah Battery): 2.5 kg / 5.5 lbs.
• Battery type: 18V Lithium-ion / 1.5 Ah.
• Battery charging time: ca. 30 min with 18V / 1.5 Ah.
• Punching time: Ø 22.5 MonoCut™ on 2.5 mm S235 = 2.0 s; Ø 22.5 TriCut™ on 2.5 mm S235 = 5.5 s; Ø 63.5 TriCut™ on 2.5 mm S235 = 10.0 s.
• Battery capacity with 1.5 Ah: 195 x Ø 22.5 MonoCut™ on 2.5 mm S235; 165 x Ø 22.5 TriCut™ on 2.5 mm S235; 105 x Ø 63.5 MonoCut™ on 2.5 mm S235; 65 x Ø 63.5 TriCut™ on 2.5 mm S235; 170 x Ø 22.5 TwinCut™ on 1.5 mm V2A; 95 x Ø 63.5 TwinCut™ on 1.5 mm V2A.
• Vibration: < 2.5 m/s2.
• Noise emission: 80 dB(A) at 300 mm from drive.
• Operating temperature: -10°C up to +40°C / +14°F up to +104°F.
• Special features: Express pressure safety valve up to 680 Bar (9850 psi); Automatic return; Service interval indicator.

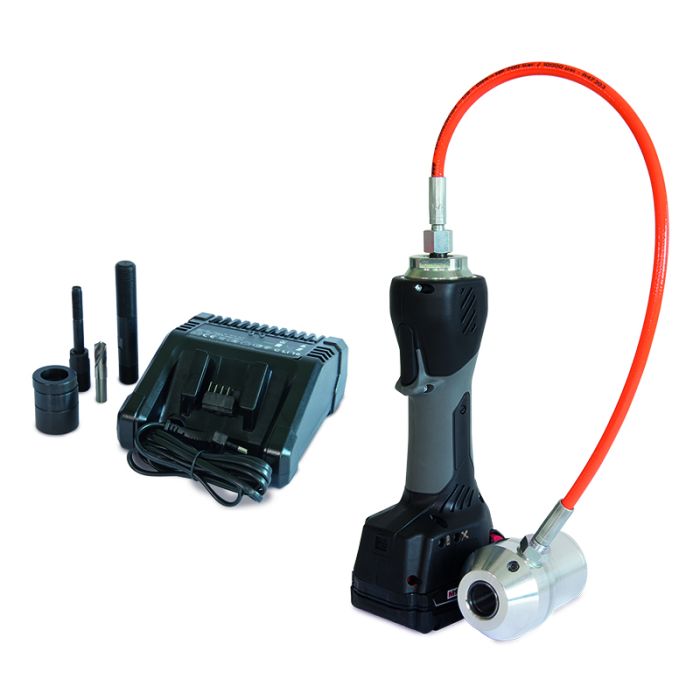

Scope of delivery

• 1 Akku-Compact Flex® Punch.
• 1 Rechargeable 18V batteries.
• 1 battery charger 18-24V / 120V.
• 1 Hydraulic Draw Bolt 9.5 x 19mm.
• 1 Hydraulic Draw Bolt 9 x 120mm.
• 1 HSS Pre-Drill Ø 11 mm.
• 3 Distance Bush.
