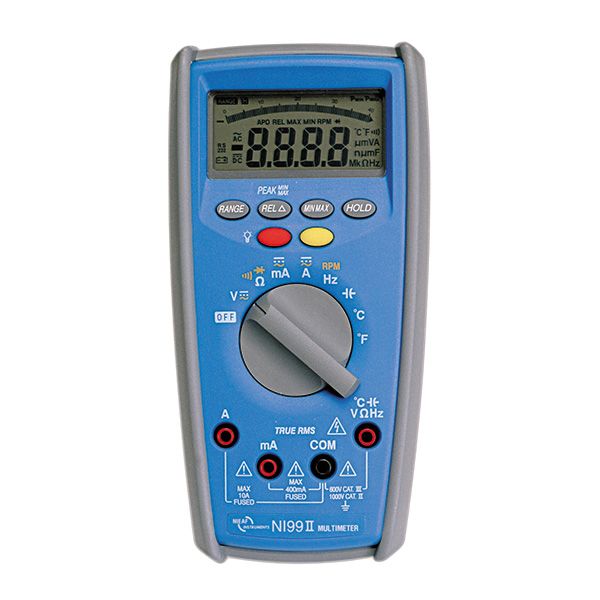

Multimeter 750AC/1000DC True RMS

The most complete multimeter of the 90-series is the NI 99II. This True RMS multimeter is a merge of user friendly navigation, accuracy and quality. Because of its many functions, for example temperature measurement, the NI 99II is an excellent and complete digital multimeter. The utility case has a removable protective holster with built-in stand (for workbench applications).

Features

• LCD Backlight
• Capacitance
• Temperature
• RPM
• Diode and continuity test
• Auto ranging
• ‘Analogue’ bargraph

Specifications

• AC Voltage detection: 400mV ... 750V AC ( ±1,3% + 5d).
• DC Voltage detection: 400mV ... 1000V DC (± 0,02% + 2d).
• AC Current: 40mA, 400mA, 10A AC (± 2,08% + 8d).
• DC Current: 40mA, 400mA, 10A AC (± 0,6,% + 4d).
• Resistance: 400 ? … 40M? (± 0,4% + 3d).
• Frequency: 4kHz … 4MHz (±0,01% + 1d).
• Capacitance: 4nF … 40mF (± 2,0% + 5d).
• Temperature: -20 … +800oC (± 2% + 2oC).
• Over Voltage Category: CAT II 1000V / CAT III 600V.
• Display resolution: 40.000d.
• Supply: 1 x 9V battery.
• Standard: EN 61010-1.
• Dimensions: 210 x 100 x 55 mm.
• Weight: ± 685 gram.

Including

• Alligator clamps
• Hanging kit
• Temperature adaptor
• Test leads
• Protective holster
• Battery
• Manual
