Toestel voor niet pelbare halfgeleider Ø14-44 mm

Op voorraad Op voorraad
SKU-short: MF1+
Merk:

Hoofdspecificaties

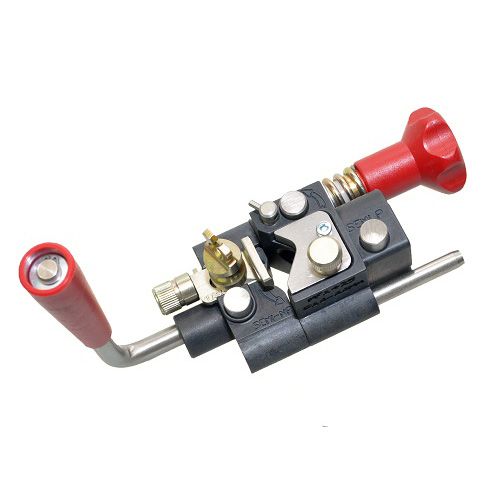

Tool that enables the user to shave the bonded semiconductor at the desired length with a chamfer on the semiconductor cutback. Stylus in option score the peelable semiconductor or chamfer the insulation.

Features

  • Function: Remove the outer semi-conductor.
  • Diameter: 14 - 44 mm.
  • Smooth finishing over insulation.
  • Fine tuning of blade with a 'click' for each 0,1 mm.
  • Sliding thrust embeded in the tool to set semiconductor remaining lengt.
  • Silicone required for non peelable semiconductor.
  • Thickness capacity: 0,4 - 1,4 mm.
  • Angle of the chamfer on the semiconductor: 14,5°.
  • Remaining length: 25-30-40-45 mm.
  • Certifications: Approved by ENEDIS.
  • Length: 190 mm.
  • Width: 85 mm.
  • Height: 125 mm.
  • Weight without box: 0,75 Kg.

Options

  • SRC - Scoring stylus for peelable semiconductor with chamfer.
  • SR - Scoring stylus for peelable semiconductor.
  • SCH - Chamfering stylus for insulation.
  • PCR2 - Quick set up right angled 45° handle.

Spare parts

  • LASCR1 - Spare blade for bonded semiconductor.
  • PER -Quick set up right angled 90° handle.
Toon meer

Momenteel zijn er geen online aankopen mogelijk.
Toch kopen of op zoek naar een offerte?
Contacteer ons via e-mail op infocontact@sadinter.be of telefonisch op 02/349.09.11.

Omschrijving

Tool that enables the user to shave the bonded semiconductor at the desired length with a chamfer on the semiconductor cutback. Stylus in option score the peelable semiconductor or chamfer the insulation.

Features

  • Function: Remove the outer semi-conductor.
  • Diameter: 14 - 44 mm.
  • Smooth finishing over insulation.
  • Fine tuning of blade with a 'click' for each 0,1 mm.
  • Sliding thrust embeded in the tool to set semiconductor remaining lengt.
  • Silicone required for non peelable semiconductor.
  • Thickness capacity: 0,4 - 1,4 mm.
  • Angle of the chamfer on the semiconductor: 14,5°.
  • Remaining length: 25-30-40-45 mm.
  • Certifications: Approved by ENEDIS.
  • Length: 190 mm.
  • Width: 85 mm.
  • Height: 125 mm.
  • Weight without box: 0,75 Kg.

Options

  • SRC - Scoring stylus for peelable semiconductor with chamfer.
  • SR - Scoring stylus for peelable semiconductor.
  • SCH - Chamfering stylus for insulation.
  • PCR2 - Quick set up right angled 45° handle.

Spare parts

  • LASCR1 - Spare blade for bonded semiconductor.
  • PER -Quick set up right angled 90° handle.
