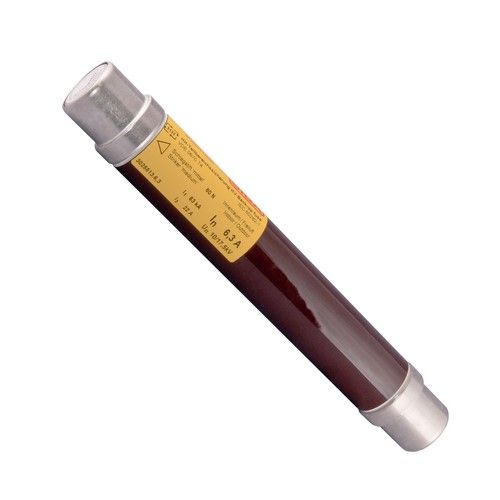

HS DIN Back-up zekeringen 20/36 kV met geïntegreerde temperatuurbegrenzer

SKU-short: HVF20-36KV
Merk: SIBA

Hoofdspecificaties

High Voltage fuse-links (HV fuse-links) are in use as protection devices in medium voltage switchgear and equipment against dynamic thermal effects of such short-circuits in a very effective way.
SIBA-HV fuse-links are suitable for the installation in indoor switchgears, air- and gas-insulated, and outdoor switchgear.
SIBA HV Fuse-links have parallel connected pure silver fuse-elements. The design and method of production of the elements ensures narrow tolerances of time-currentcharacteristics. The fuse elements are wound on a ceramic support and are attached to the silver plated connection caps by means of spot-welding. The sealing method ensures tightness against ingress of humidity.
SIBA HV Fuse-links up to and including 160 A with a triker pin of 80 N are equipped with an integrated temperature limiter as standard. avoids inadmissible high temperatures – no matter for whatever reason they are generated – in gas-insulated switchgear or narrow switchgear enclosures. By means of a melting activator temperatures inside the fuse link enclosure are limited to below approx. 100°C.
Reliable sealing system against humidity / dust and corrosion.
Free of ageing.
Low power losses and respectively, low temperature rise.
High breaking capacity.
High current limitation.
Low switching voltage.
High service reliability because of advanced controlled fabrication process.
Comply with VDE 0670 Part 4 / IEC 60282-1. High-voltage fuses Part 1: Current limiting fuses.
Comply with DIN 43625: High-voltage fuses, rated voltages 3.6 up to 36 kV.

Toon meer

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Momenteel zijn er geen online aankopen mogelijk.
Toch kopen of op zoek naar een offerte?
Contacteer ons via e-mail op infocontact@sadinter.be of telefonisch op 02/349.09.11.

Gegroepeerde productitems
REF	Klasse	Stroom	Ø	Lengte	Vermogensverlies	Onderbrekingskracht	Spanning	Gewicht	Voorraad
3001613.31,5	Back-up	31,5 A (In)	67 mm	537 mm	102 W	40 kA	20/36 kV AC (Ur)	3,5 kg

Momenteel zijn er geen online aankopen mogelijk.
Toch kopen of op zoek naar een offerte?
Contacteer ons via e-mail op infocontact@sadinter.be of telefonisch op 02/349.09.11.

Omschrijving

High Voltage fuse-links (HV fuse-links) are in use as protection devices in medium voltage switchgear and equipment against dynamic thermal effects of such short-circuits in a very effective way.
SIBA-HV fuse-links are suitable for the installation in indoor switchgears, air- and gas-insulated, and outdoor switchgear.
SIBA HV Fuse-links have parallel connected pure silver fuse-elements. The design and method of production of the elements ensures narrow tolerances of time-currentcharacteristics. The fuse elements are wound on a ceramic support and are attached to the silver plated connection caps by means of spot-welding. The sealing method ensures tightness against ingress of humidity.
SIBA HV Fuse-links up to and including 160 A with a triker pin of 80 N are equipped with an integrated temperature limiter as standard. avoids inadmissible high temperatures – no matter for whatever reason they are generated – in gas-insulated switchgear or narrow switchgear enclosures. By means of a melting activator temperatures inside the fuse link enclosure are limited to below approx. 100°C.
Reliable sealing system against humidity / dust and corrosion.
Free of ageing.
Low power losses and respectively, low temperature rise.
High breaking capacity.
High current limitation.
Low switching voltage.
High service reliability because of advanced controlled fabrication process.
Comply with VDE 0670 Part 4 / IEC 60282-1. High-voltage fuses Part 1: Current limiting fuses.
Comply with DIN 43625: High-voltage fuses, rated voltages 3.6 up to 36 kV.
