Komplete koffers

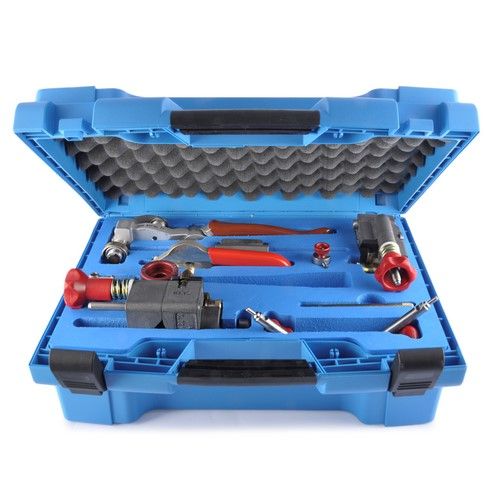

Plastic box containing tools needed to prepare cables.

Content

• PG3C28L33: Pliers for MV cable outer sheath.
• MF1+: Tool for bonded semiconductor.
• MF2/40: Multifunction tool for outer sheath and insulation.
• LMF2: Blade for outer sheath and primary insulation.
• GRB-FINIT: Scraper for residues of bonded semiconductor screen Ø15 - 240 mm.
• OGA: Outer sheath opener tool.
• PASC1: Gauge for pre-setting the blade of the tools to remove the bonded semiconductor.
• ASC/R2: tool to remove the bonded semi-conductor.
• RTT2: Tool for sheath abrading.

PG3C28L33

• It enables the user to make a circular and longitudinal cut in order to remove cable's outer sheath.
• Diameter: 26 - 52 mm.
• Circular cutting depth: 2,8 mm.
• Longitudinal cutting depth: 3,3 mm.
• Application: field, laboratory, production.
• Product benefits : Quick, light and easy to use.
• Length: 265 mm.
• Width: 95 mm.
• Height: 80 mm.
• Weight without box: 0,6 Kg.

MF1+

• Function: Remove the outer semi-conductor.
• Diameter: 14 - 44 mm.
• Smooth finishing over insulation.
• Fine tuning of blade with a 'click' for each 0,1 mm.
• Sliding thrust embeded in the tool to set semiconductor remaining lengt.
• Silicone required for non peelable semiconductor.
• Thickness capacity: 0,4 - 1,4 mm.
• Angle of the chamfer on the semiconductor: 14,5°.
• Remaining length: 25-30-40-45 mm.
• Certifications: Approved by ENEDIS.
• Length: 190 mm.
• Width: 85 mm.
• Height: 125 mm.
• Weight without box: 0,75 Kg.

MF2/40

• Enables the user to remove the outer sheath (PE-PVC-PR) with a straight and neat cut.
• Enables the user to set the length and remove thicker insulation with a straight and neat cut.
• Capacity: ø16 - 40 mm.
• Tuning of the pitch of the tool.
• Embeded wear pads to protect the tool from the contact with the outer sheath.
• Outer sheath and insulation thickness capacity: 7 mm.
• Certifications: Approved by ENEDIS.
• Length: 150 mm.
• Width: 80 mm.
• Height: 100 mm.
• Weight without box: 1,24 Kg.

LMF2

• To remove the outer sheath and the insulation.
• Capacity: ø14 - 58 mm.
• The blade LMF2 fits the following products: MF2/40, MF2/60, MF3/40, MF3/60, MF3/40-SSR, MF3/60-SSR, MF3NP/40, MF3NP/60, BRMRD1E.
• Cutting depth: 9 mm.
• Certifications: Approved by ENEDIS.
• Length: 36 mm.
• Width: 16 mm.
• Height: 6 mm.
• Weight without box: 0,007 Kg.

OGA

• Function: It enables the user to perform a longitudinal cut on the outer sheath of the cables.
• Diameter: 20 - 200 mm.
• 2 cutting edges on the same blade for an extended working life.
• 4 cutting thickness positions.
• Hevy duty.
• Length: 180 mm.
• Width: 26 mm.
• Height: 62 mm.
• Weight without box: 0,27 Kg.
• Spare blade: LKMS.

ASC/R2

• ASC R2 tool removes the bonded semi-conductor from MV and HV cables and chamfers the semi-conductor in a clean and swift manner.
• The blade is adjustable from 0.4 to 1.4 mm.
• Remaining length of semi-conductor: 30 or 40 mm without adjustment.
• Diameter on semi-conductor: 20 to 50 mm.
• Sections: 50 to 630 mm².
• Length: 180 mm.
• Width: 55 mm.
• Height: 105 mm.
• Weight: 780 g.

RTT2

• Function : Circular abrasion of the outer sheath of the cable.
• Diamètre : 20 - 52 mm.
• Longueur : 277 mm.
• Largeur : 87 mm.
• Hauteur : 71 mm.
• Poids hors coffret : 0,91 Kg.
