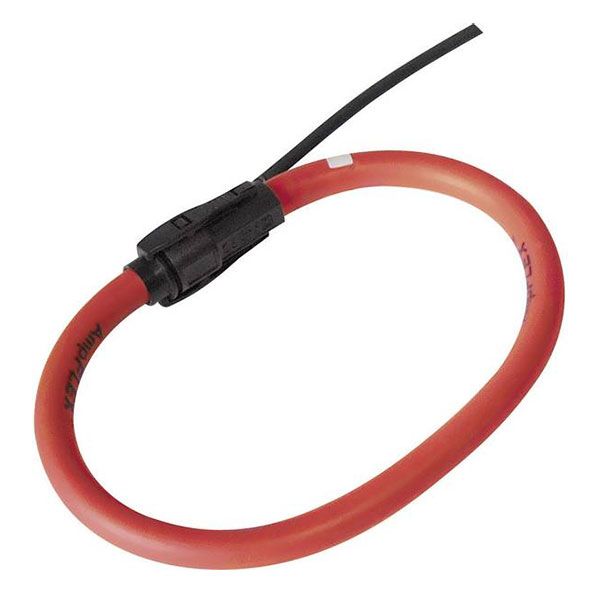

Flexibele stroomsensor AmpFlex® - 450mm 100mA-10kA AC - zwart

Current clamps and AmpFlex® flexible current sensors are used to measure the current flowing in a cable without opening the circuit. They also insulate the user from dangerous voltages in the circuit.
The choice of current sensor to be used depends on the current to be measured and the diameter of the cables.

• Measurement range: 10 - 10,000 A.
• Clamping diameter: 120 mm.
• Protection index: IP 65 according to IEC 60 529.
• Drop test: according to IEC 61010-1.
• Electrical safety according to IEC 61010-2-032.
• Maximum appliable voltage: 1000 V Cat III or 600 V Cat IV.
• Type of current sensor as per IEC 61010-2-032: type B.
• Dimensions (L x W x H) approx.: 170 x 158 x 25 mm.
• Cord: 3 metres long.
• Weight approx.: 220 g.
