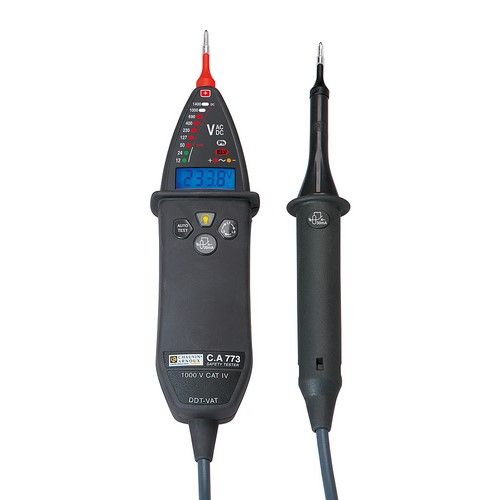

Spanningsafwezigheidstester LS - (DDT/VAT) CAT4 1000V - Leds

Niet op voorraad

SKU-short: CA773
Merk: Chauvin Arnoux

Hoofdspecificaties

CAT IV 1,000 V IP65.
Full autotest.
Voltage detection, LED display + backlit digital display: 12 VAC = U = 1,000 VAC • 12 VDC = U = 1,400 VDC.
Frequency: DC, 162/3 to 800 Hz.
Stray voltage detection.
Unipolar phase detection (a single contact).
Two-pole phase-sequence testing with 2-wire method = a third hand is not required.
Continuity test with audible and visual indication (R < 100 ?).
Extended continuity test with visual indication for R < 0.5 O to 2.999 kO.
RCD trip test.
Complies with EN 61243-3 Ed.2009, EN 61243-3 Ed.2010 & IEC 61010 1000 V CAT IV.
Climatic conditions: -15 °C to +45 °C (Class N).
Battery life > 2,500 x 10 s measurements.
Removable lead and test probe.
Delivered complete and ready to use.
Geleverd 1 snoer met zwarte meetpen Ø2mm met veiligheidsdop van kristal, 1 veiligheidsdop, 1 klittenband, 2 batterijen 1.5V LR03/AAA en 1 gebruikshandleiding in 5 talen.

Toon meer

Omschrijving

CAT IV 1,000 V IP65.
Full autotest.
Voltage detection, LED display + backlit digital display: 12 VAC = U = 1,000 VAC • 12 VDC = U = 1,400 VDC.
Frequency: DC, 162/3 to 800 Hz.
Stray voltage detection.
Unipolar phase detection (a single contact).
Two-pole phase-sequence testing with 2-wire method = a third hand is not required.
Continuity test with audible and visual indication (R < 100 ?).
Extended continuity test with visual indication for R < 0.5 O to 2.999 kO.
RCD trip test.
Complies with EN 61243-3 Ed.2009, EN 61243-3 Ed.2010 & IEC 61010 1000 V CAT IV.
Climatic conditions: -15 °C to +45 °C (Class N).
Battery life > 2,500 x 10 s measurements.
Removable lead and test probe.
Delivered complete and ready to use.
Geleverd 1 snoer met zwarte meetpen Ø2mm met veiligheidsdop van kristal, 1 veiligheidsdop, 1 klittenband, 2 batterijen 1.5V LR03/AAA en 1 gebruikshandleiding in 5 talen.
