Vermogen monitor Klasse 0,5 96x96

Bekijk de variaties
SKU-short: 96X96
Merk: Enerdis

Hoofdspecificaties

  • Active energy accuracy class: 0.5s (EN 62053-22) / 0.5 (IEC 61557-12).
  • Measurement accuracy: Voltage 0.2 % (20 % to 130 %) / Current 0.2 % (10 % to 130 %).
  • Max. power measured: 2 GW (VT ? 650 kV primary / CT ? 25 kA primary).
  • Measurement in all 4 quadrants (Import / Export).
  • Measurement on single and three-phase networks (3/4 wires, balanced / unbalanced).
  • Measurement functions (see detailed table): instantaneous (1 sec.), average (programmable), min., max., min. of averages, max. of averages.
  • Measurement of harmonics up to the 25th order (with graphic representation by order) and THD-U / V / I / In.
  • Hour meters: 3 (network presence, load presence, aux. source).
  • 8 load curves (average values) on all types of utilities (electricity, water, gas, etc.).
  • Customizable graphical screen (up to 3 as required).
  • 16 configurable alarms and time/date-stamped recording of up to 64 events.
  • Mounting options: on front panel or DIN rail.
  • Configuration of all the parameters: on front panel (USB) or via remote link.
  • Possibility of upgrading the firmware on the front panel or remotely.
  • Indication of connection errors.
  • Auxiliary power supply: 80 to 265 Vac from 42.5 to 69 Hz / 110 to 375 Vdc.
  • Operating temperature: -10° C to +55° C (K55 as per IEC 61557-12).
Toon meer

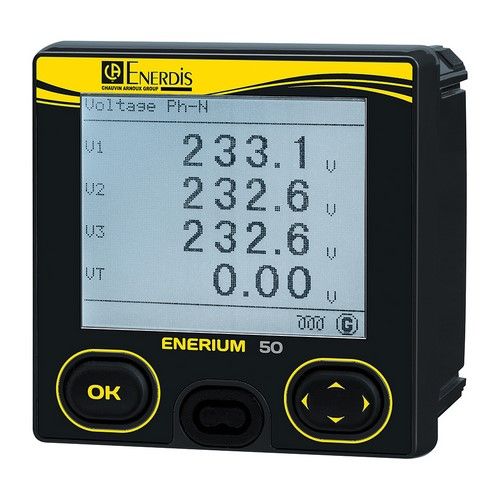

main product photo

Momenteel zijn er geen online aankopen mogelijk.
Toch kopen of op zoek naar een offerte?
Contacteer ons via e-mail op infocontact@sadinter.be of telefonisch op 02/349.09.11.

Gegroepeerde productitems
REF Capaciteit Verbinding Uitschakelcurve Afmetingen Display Aantal Uitgangen Precisie Voorraad
ENERIUM150-ETHERNET Harmonics (50) 1x Ethernet Curves : 8 load / 4 trend 96 x 96 mm Backlit LCD 2 I/O 0.5
délai sur demande
ENERIUM50-ETHERNET Harmonics (25) 1x Ethernet Curves : 8 load / 0 trend 96 x 96 mm Backlit LCD 2 I/O 0,5
délai sur demande

Momenteel zijn er geen online aankopen mogelijk.
Toch kopen of op zoek naar een offerte?
Contacteer ons via e-mail op infocontact@sadinter.be of telefonisch op 02/349.09.11.

Omschrijving

  • Active energy accuracy class: 0.5s (EN 62053-22) / 0.5 (IEC 61557-12).
  • Measurement accuracy: Voltage 0.2 % (20 % to 130 %) / Current 0.2 % (10 % to 130 %).
  • Max. power measured: 2 GW (VT ? 650 kV primary / CT ? 25 kA primary).
  • Measurement in all 4 quadrants (Import / Export).
  • Measurement on single and three-phase networks (3/4 wires, balanced / unbalanced).
  • Measurement functions (see detailed table): instantaneous (1 sec.), average (programmable), min., max., min. of averages, max. of averages.
  • Measurement of harmonics up to the 25th order (with graphic representation by order) and THD-U / V / I / In.
  • Hour meters: 3 (network presence, load presence, aux. source).
  • 8 load curves (average values) on all types of utilities (electricity, water, gas, etc.).
  • Customizable graphical screen (up to 3 as required).
  • 16 configurable alarms and time/date-stamped recording of up to 64 events.
  • Mounting options: on front panel or DIN rail.
  • Configuration of all the parameters: on front panel (USB) or via remote link.
  • Possibility of upgrading the firmware on the front panel or remotely.
  • Indication of connection errors.
  • Auxiliary power supply: 80 to 265 Vac from 42.5 to 69 Hz / 110 to 375 Vdc.
  • Operating temperature: -10° C to +55° C (K55 as per IEC 61557-12).
