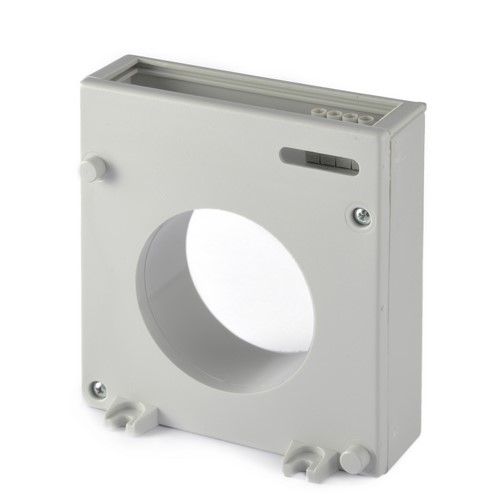

Ringkerntransformator CTB-1/80 Ø80mm

Niet op voorraad Niet op voorraad
SKU-short: 621409400
Merk: Terasaki

Hoofdspecificaties

  • The transformer and relay assembly sensitivity is fixed by the relay.
  • Mounting position: any one.
  • Application: for using with ELR series.
  • Working temperature: -10 ÷ 70°C.
  • Stocking temperature: -20 ÷ 80°C.
  • Transformation ratio: 500/1.
  • Isolation: 2,5 kV per 60 sec.
  • Permanent overload: 1000 A.
  • Thermal overload: 40 kA per 1 sec.
  • Terminals: screws with maximum cross section 2,5 mm².
  • Protection degree: IP20.
  • Standard of reference: EMC CEI-EN 50081-2 CEI-EN50082-2 SAFETY CEI 41.1 CEI-EN 60255.
Toon meer

Momenteel zijn er geen online aankopen mogelijk.
Toch kopen of op zoek naar een offerte?
Contacteer ons via e-mail op infocontact@sadinter.be of telefonisch op 02/349.09.11.

Omschrijving

  • The transformer and relay assembly sensitivity is fixed by the relay.
  • Mounting position: any one.
  • Application: for using with ELR series.
  • Working temperature: -10 ÷ 70°C.
  • Stocking temperature: -20 ÷ 80°C.
  • Transformation ratio: 500/1.
  • Isolation: 2,5 kV per 60 sec.
  • Permanent overload: 1000 A.
  • Thermal overload: 40 kA per 1 sec.
  • Terminals: screws with maximum cross section 2,5 mm².
  • Protection degree: IP20.
  • Standard of reference: EMC CEI-EN 50081-2 CEI-EN50082-2 SAFETY CEI 41.1 CEI-EN 60255.
